← All case studies

CASE STUDIES

Reverse Engineering

Obsolete, unavailable or improvable parts — measured, re-engineered and made better than the original.

HSR bearing-change tooling drawing (redacted)
1 / 1

01 / 04

HSR Tooling

Bearing removal and fitting tools for the Reiter HSR.

  • Titan 1000 bearing tools.
  • Premium materials, used with a 1,200-bar hydraulic nut.
  • No need for the OEM to supply and charge for tooling.
  • Site engineers can now be trained to complete the job themselves, without OEM oversight.
Finger car lift fingers drawing (redacted)
1 / 1

02 / 04

Finger Car Lift Fingers

Lifting fingers for the KELLER finger car.

  • An exact copy — weld placement and thickness identical to the originals.
  • Engineers can now replace finger by finger, rather than buying a full set that needs a crane and several days to fit.
Safety improvements drawing (redacted)
Machine guarding
Machine guarding
Machine guarding
1 / 4

03 / 04

Safety Improvements

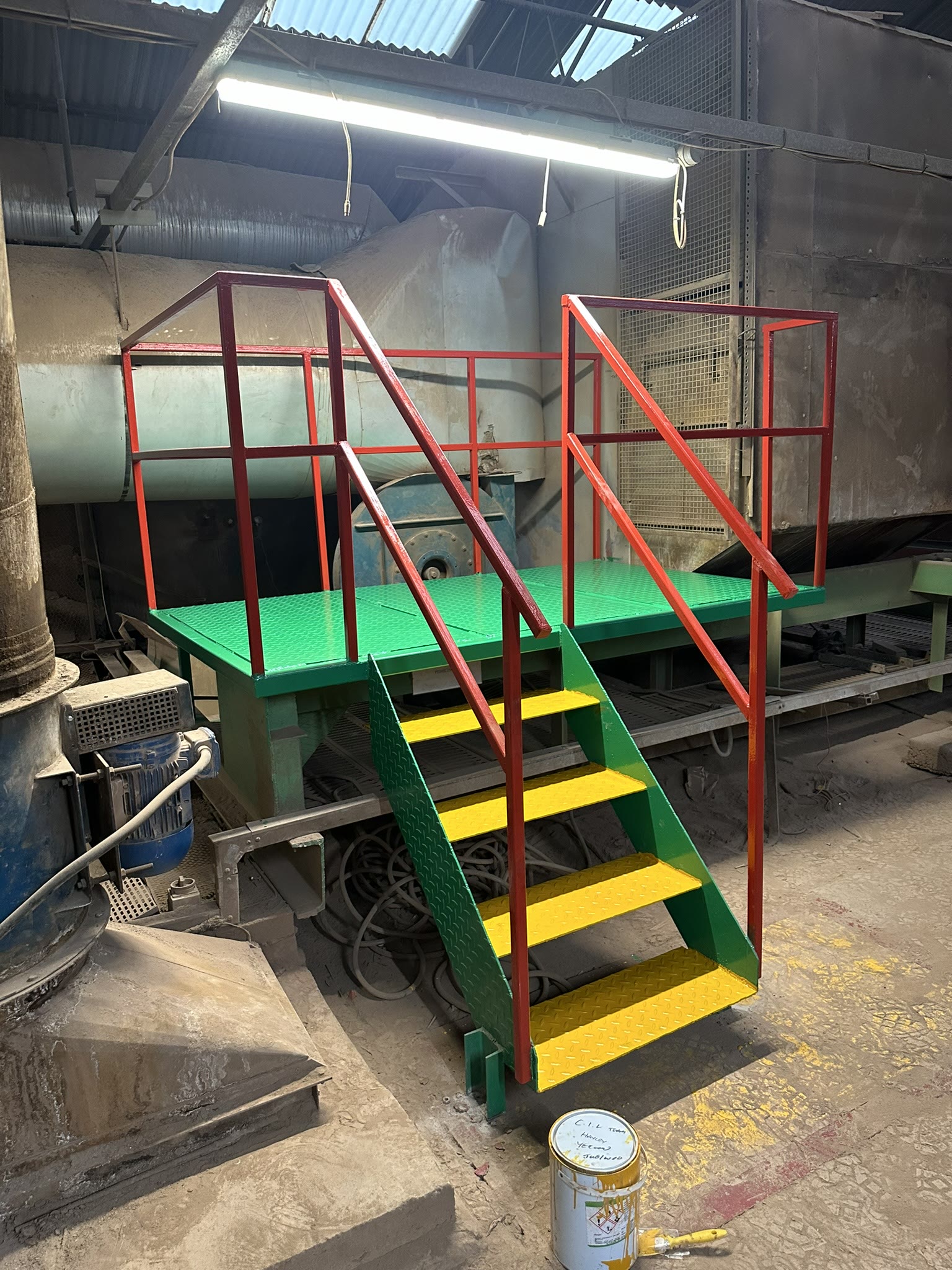

Guarding and platforms.

  • Made in accordance with the official ISO and BS/EN regulations.
  • Over-specified for added security.
Wide-belt transmission shaft drawing (redacted)
1 / 1

04 / 04

Transmission Shaft

Freymatic cutting-table wide-belt transmission shaft.

  • Modern design with a removable shaft.
  • 5 mm smaller in diameter — a more effective transmission size.
  • EN8 seamless tube with an EN19 shaft.
